Phoenix Specifications

cad1 cad2 cad3Phoenix Specifications

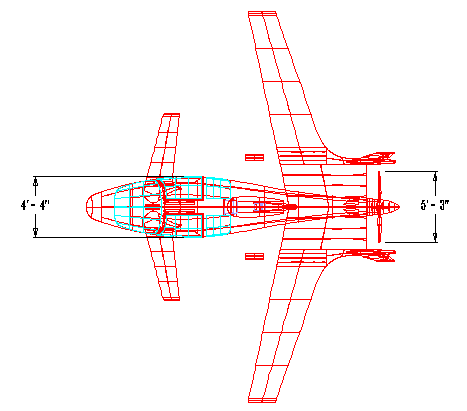

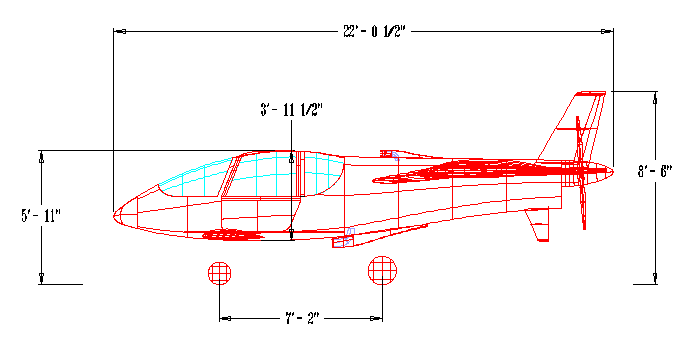

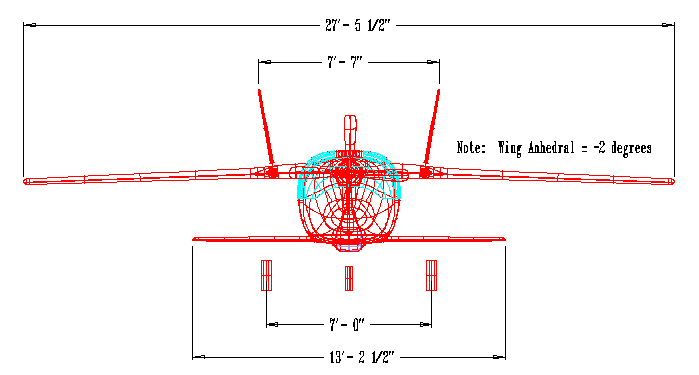

External Dimensions

  • Overall length: 22 feet
  • Overall Height: 8.5 feet Wingspan: 27.5 feet

Internal Dimensions

  • Cockpit width: 50 inches.
  • Cockpit depth (from floor): 42 inches
  • Cockpit length (pedals to rear cockpit bulkhead): 85 inches

Weights

  • Empty Weight: 1161 pounds Maximum
  • Gross Weight: 1981 pounds

Controls

  • Pitch: Elevators mounted on wing center section
  • Roll: Conventional ailerons
  • Yaw: Conventional rudders
  • Cockpit: Dual sticks and rudder pedals
  • Trim: 3 axis electric, stick mounted
  • Flaps 30% chord, single slot, wing and canard

Airframe Materials

  • Carbon/Fiberglass/foam sandwich pre-impregnated and autoclave cured.

Powerplant

  • Continental TSIO 360DB
  • Rated Maximum power 225 BHP
  • Critical Altitude 18,000 feet

Propeller

  • Flight Sciences custom design: 5 foot diameter, 4 blades.

Landing Gear

  • Retractable, hydro-electric actuation.
  • Main Landing gear: Laminated fiberglass struts.
  • Nose gear: Free swivel, Oleo damped.

Fuel

  • Fuel Capacity: 60 gallons carried in wing root.

Baggage

  • Baggage Capacity: 80 pounds carried behind the seats
